Crew Stations

Tactical Crew Stations

Our solutions offer high performance and immersive video systems and capabilities to provide vehicle crew members with unparalleled situational awareness.

We have developed field-programmable gate array (FPGA), low-latency, low-cost video processing and streaming solutions suitable for high definition video distribution.

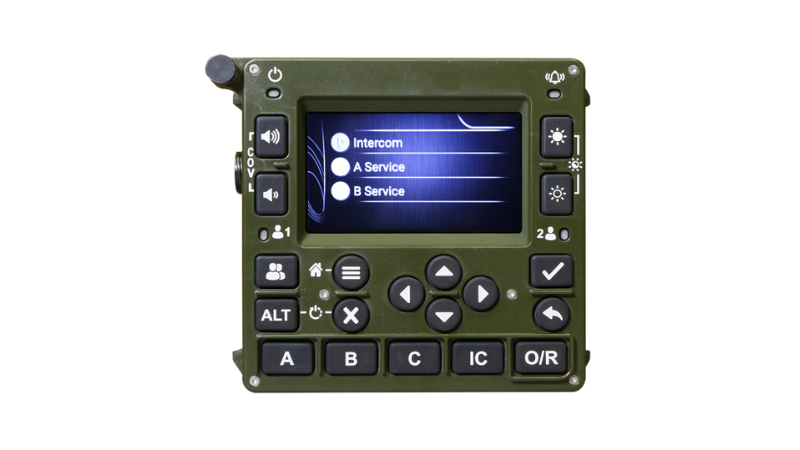

TCS-300 Tactical Crew Station

Rugged, two-user, crew station with a high-resolution Graphical User Interface (GUI) that is designed and tested for operations in the most demanding tactical environments. Its wide-range of open-standard inputs/outputs allow seamless integration with legacy and GVA or VICTORY databus compliant vehicles.

features

4.3″ sunlight-readable display
Quick access keys to most commonly used services
Mission-critical vehicle intercom service, and Voice-over-IP (VoLP) for intra and inter-vehicle Communities-of-Interest
Alarm generation and display, and platform management status monitoring
Embedded Gigabit Ethernet switch
Layer 3 IP routing capability
Open-standards IP-based architecture, and easily customized Linux software base
Expansion provisions enable future capability growth

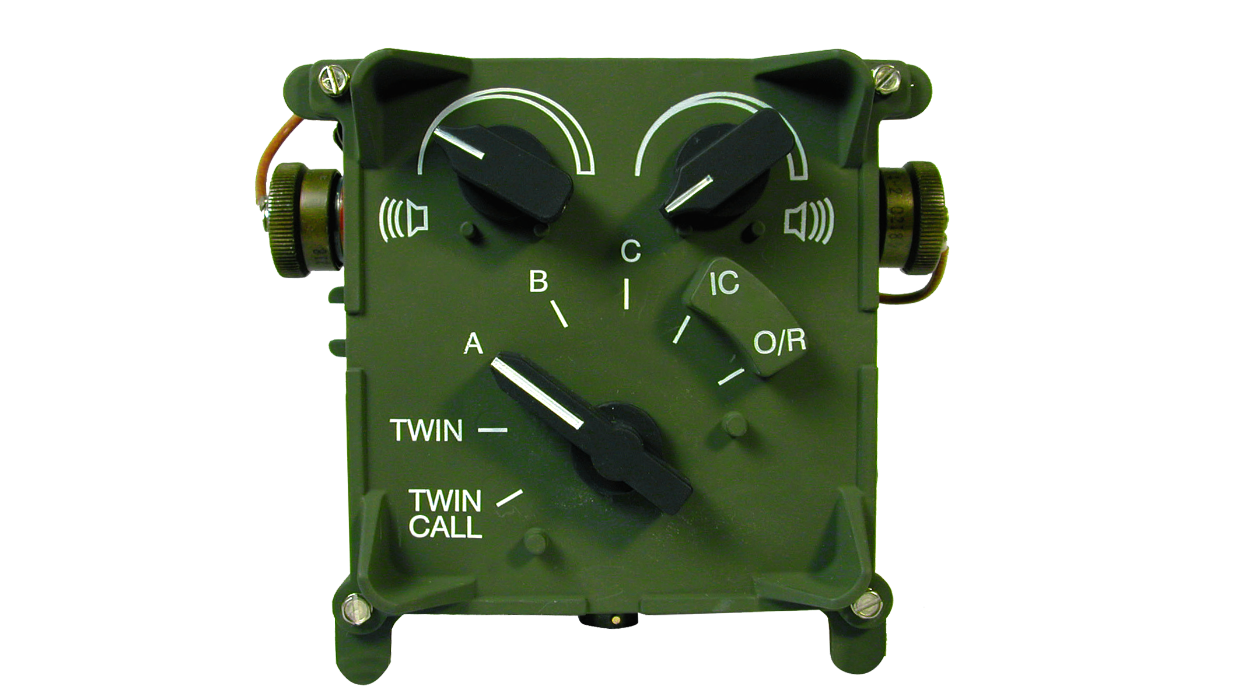

TCX-300 Tactical Crew Extension

The TCX-300 provides a rugged single user extension of a TCS-300 radio port to support inter-vehicle intercom circuits via Two-Wire Intercom Network (TWIN). Rotary control allows the user to select between intercom, TWIN, radio nets and voice override as active services.

features

Separate controls to independently adjust volume of left and right audio channels
Inter-vehicle intercom circuits via Two-Wire Intercom Network (TWIN)
Override to enable operator control over other vehicle communications
Platform audio alarms mixed into the intercom channel and distributed to all users

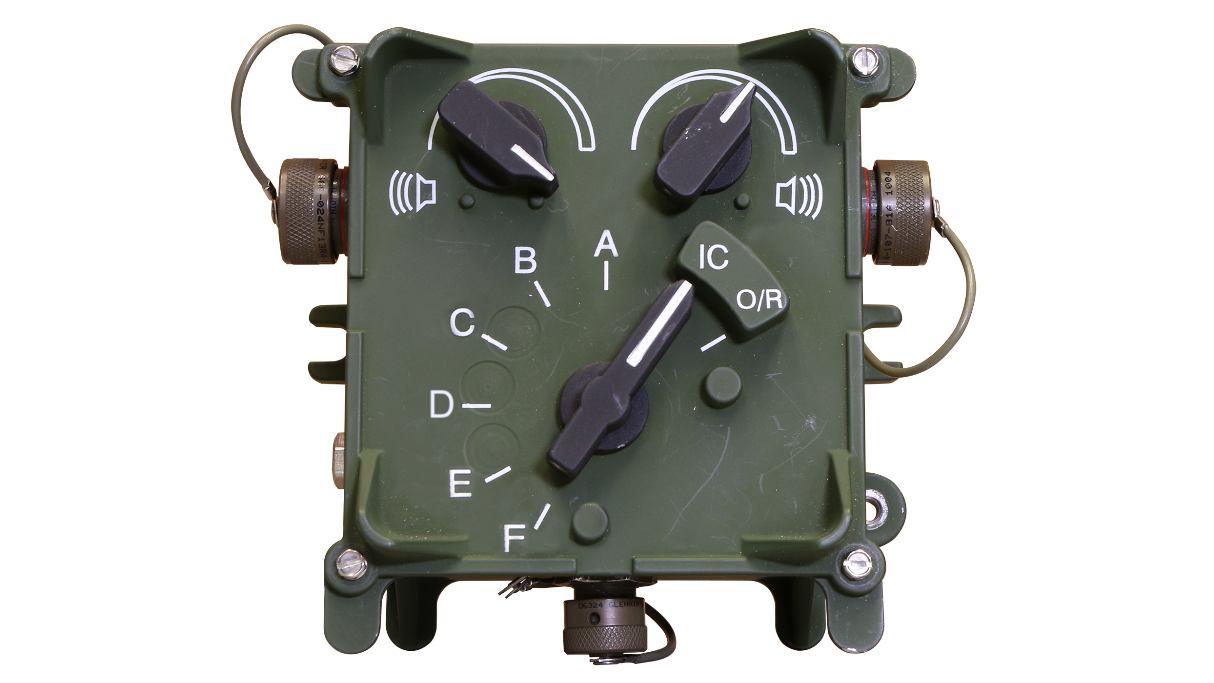

RCS-300 Rotary Crew Station

A low cost, high value alternative to the TCS-300, the Rotary Crew Station 300 (RCS-300) is a new rugged dual-user rotary controlled audio crew station device for tactical vehicles. Live and pressel-activated functions allow the user to access vehicle intercom and talk/monitor on up to six (6) radio voice channels or talk groups.

features

Separate controls to independently adjust volume of left and right audio channels
Inter-vehicle intercom circuits via Two-Wire Intercom Network (TWIN)
Override to enable operator control over other vehicle communications
Platform audio alarms (3) mixed into the intercom channel and distributed to all connected users
